Open top box dieline (FEFCO 0200)

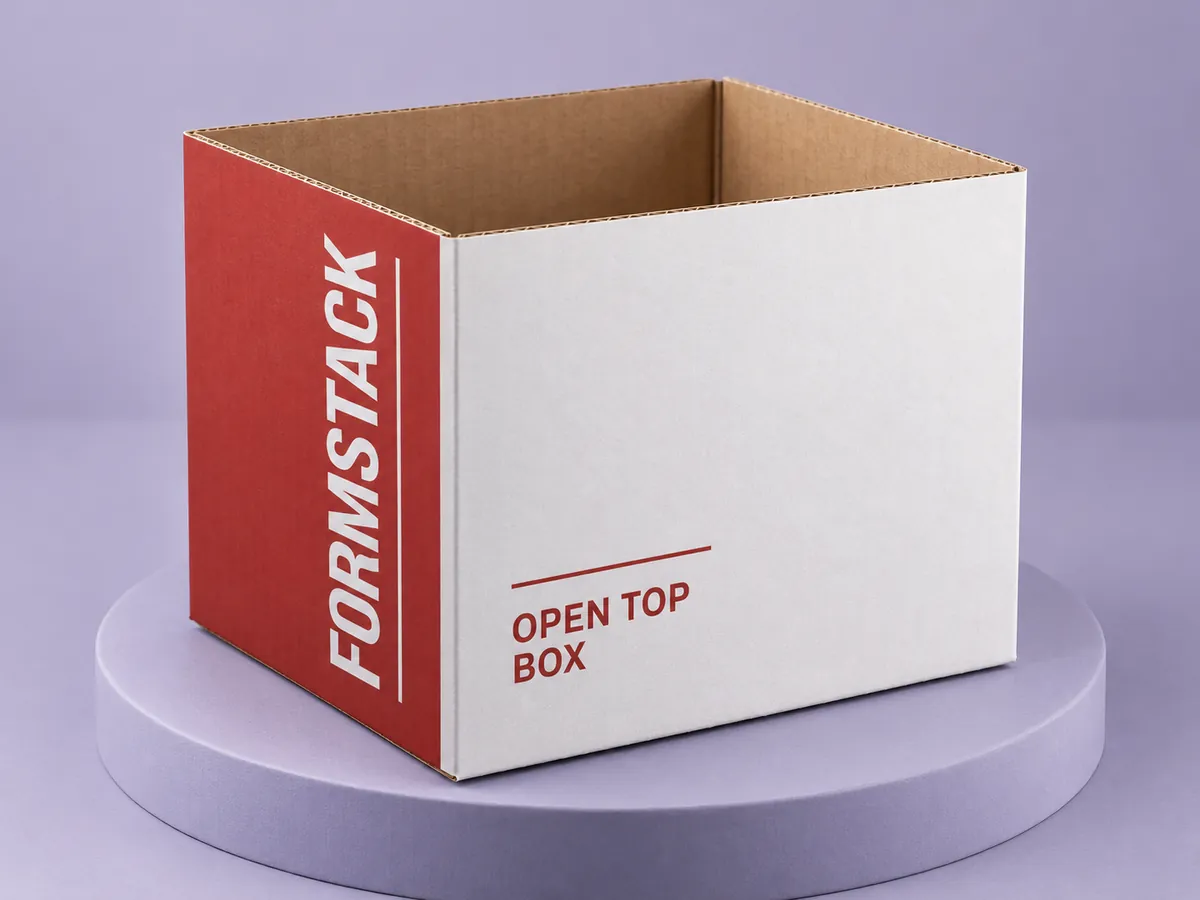

An open top box (FEFCO 0200) has bottom flaps only and is open at the top, for trays, bins and stock boxes. Set any inside size within our safe range for the style and check it in 3D.
Every design exports as a spec pack your printer can quote from: layered dieline, 3D renders, spec sheet and prepress report.
Then pick Open top under Style.
Standard sizes
Inside sizes in mm. Type your own in the editor. These are working sizes; confirm the exact spec with your supplier.
| Size | Board | Inside length | Inside width | Inside height |
|---|---|---|---|---|
| Small | B flute | 180 mm | 120 mm | 80 mm |
| Medium | B flute | 300 mm | 200 mm | 150 mm |
| Large | C flute | 400 mm | 300 mm | 200 mm |
| Extra Large | C flute | 500 mm | 400 mm | 300 mm |
All four standard sizes open in every shipping box style. Start with 3 mm (1/8 in) bleed; your printer’s own spec wins.
How to read this dieline
The line types on this dieline, and what each one means.
The outside edge of the pack. Anything past this line is trimmed off.
Where the board or film folds. Keep text and logos a few millimetres away so they do not land on a crease.
Extend background colours and images to this line so no white edge shows if the cut shifts.
Keep text, barcodes and logos inside this line. 3 to 5 mm inside the cut is a common starting point.
Before you design
The open edge
With no top flaps, the top of each side panel is a cut edge and the inside shows from above. Keep text and barcodes clear of that edge, and check the open box in 3D.
Shipping box styles
Regular slotted (FEFCO 0201)
Four flaps meet in the middle, top and bottom. The standard shipping carton.
Open top (FEFCO 0200)
Bottom flaps only, open at the top. For trays, bins and stock boxes.
Full overlap (FEFCO 0203)
Every flap spans the full width and overlaps, for strength and heavier loads.
Frequently asked questions
Can I design on this template for free?
Yes. The free plan covers designing, 3D previews and dieline and image exports; renders are watermarked and capped at 1080p. The spec pack is A$15, or included in Pro and Pro Max.
